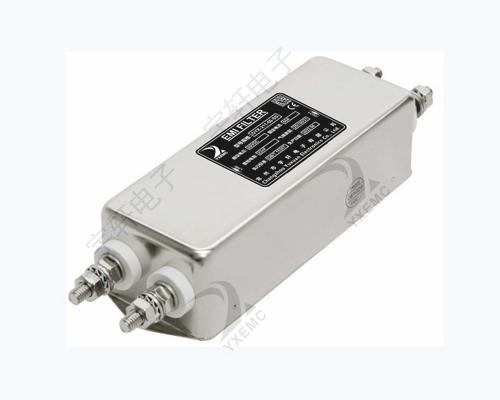

特 點 Features

● 常規(guī)通用。General purpose.

● 底板式安裝，簡單方便。

Bottom plate installation, simple and convenient.

應 用 Application

● 各種電子設備和電子測量儀器的直流側。

DC side of various electronic equipment and

electronic measuring instruments.

性能指標 Characteristcs

產品型號表 Filter Table

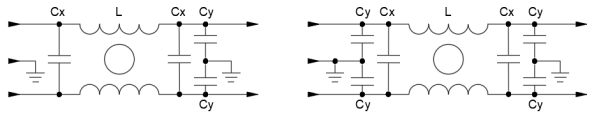

電原理圖Typical Circuit Diagram

Fig.1 Fig.2

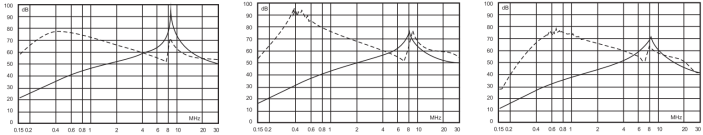

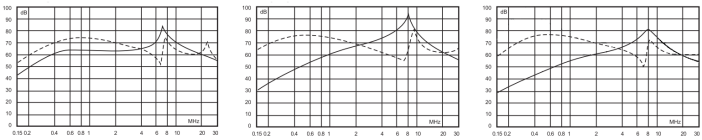

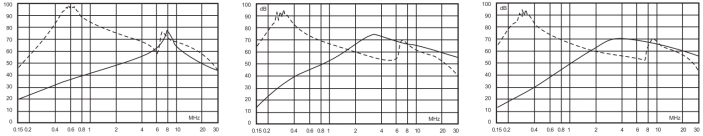

插入損耗 Insertion LOSS in dB (50Ω測量系統(tǒng)，IEC/CISPR No.17號出版物)

1A 6A 10A

15A 20A 30A~40A

50A~60A 80A 100A~120A

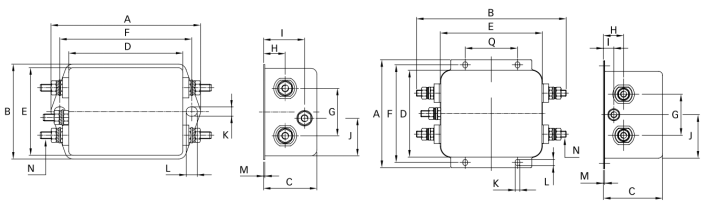

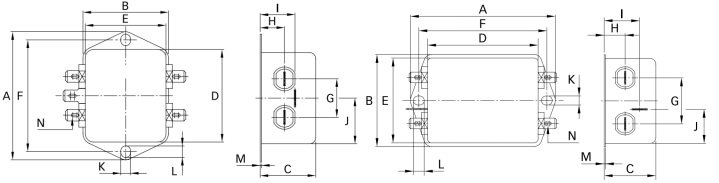

外形尺寸圖 Outline Drawing : mm

Fig.1 (1A) Fig.2 (6A~20A)

Fig.3 (30A~40) Fig.4 (50A~120A)
